O'Bosso e.V.: Clay Brick Press

I design a manual clay brick press for O'Bosso's work in Cameroon. In Onshape, I create the 3D models and manufacturing drawings for its metal parts.

Visit O'Bosso Website

About the Project

The design translates the press concept into metal parts that can be manufactured from the Onshape models and drawings. The gallery shows the overall plan and a closer view of the press mechanism.

Gallery

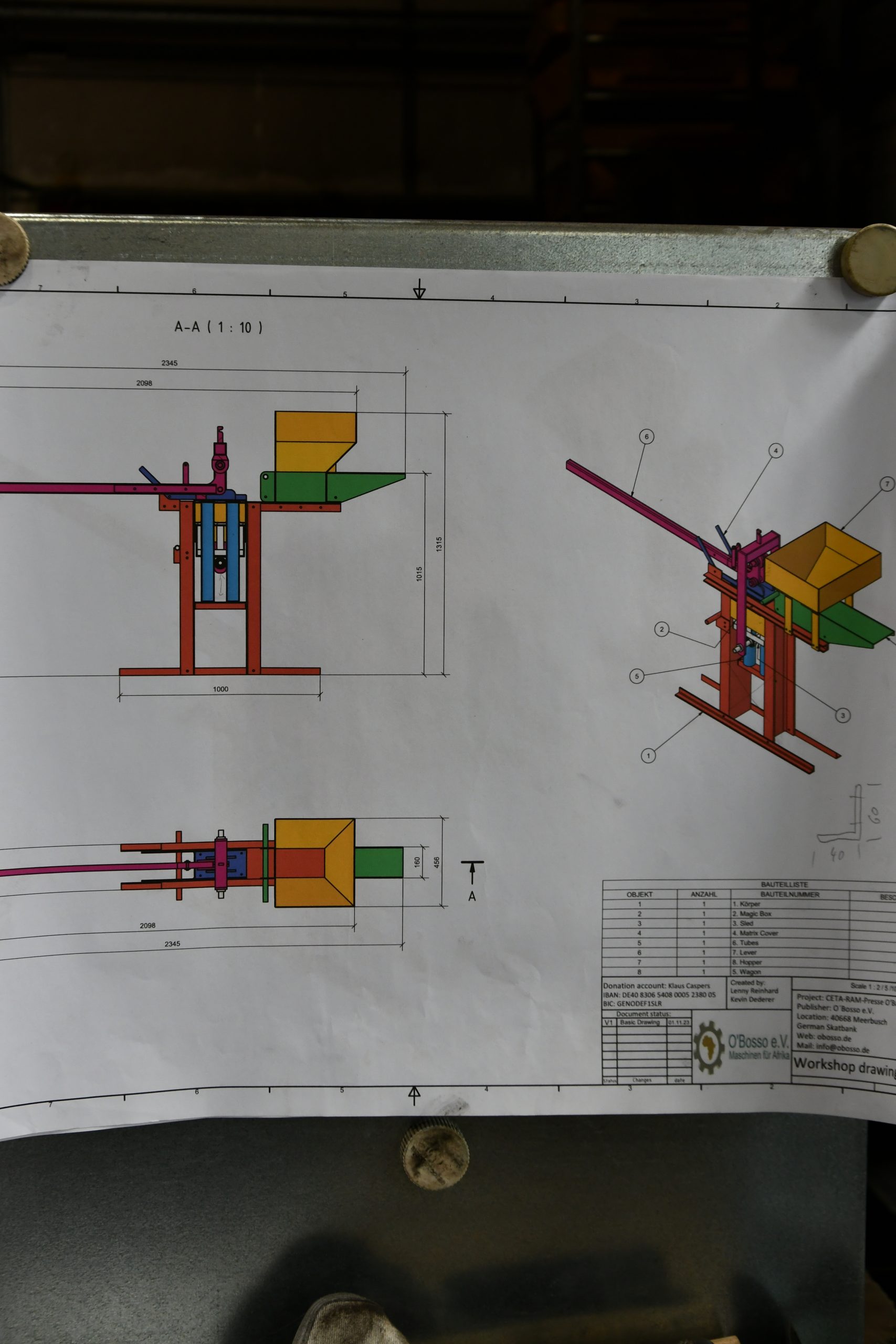

Technical plan of the manual clay brick press
Press plans and technical drawing Open project or source: Technical plan of the manual clay brick press

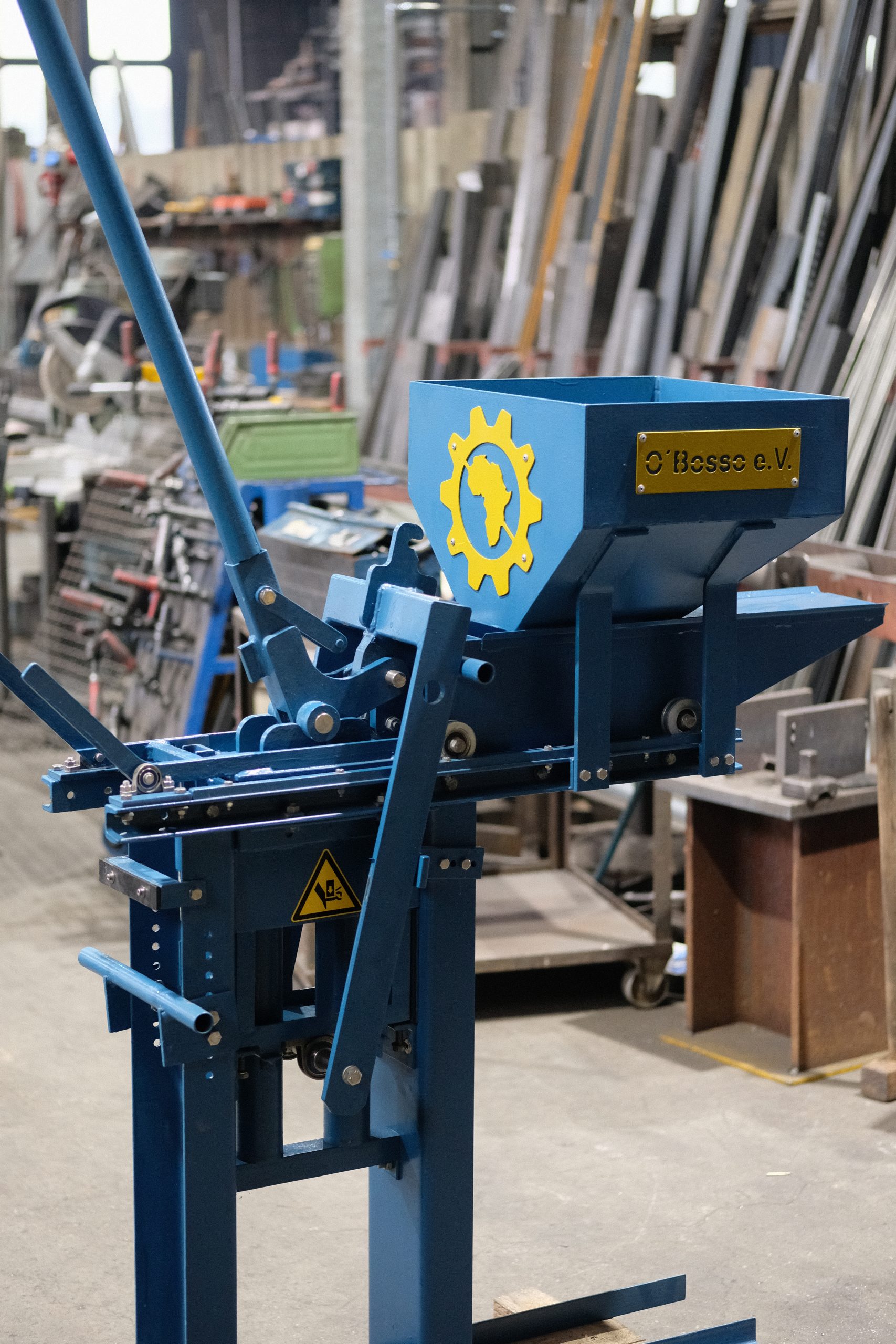

Close view of the clay brick press mechanism
Close-up of the press mechanism Open project or source: Close view of the clay brick press mechanism
